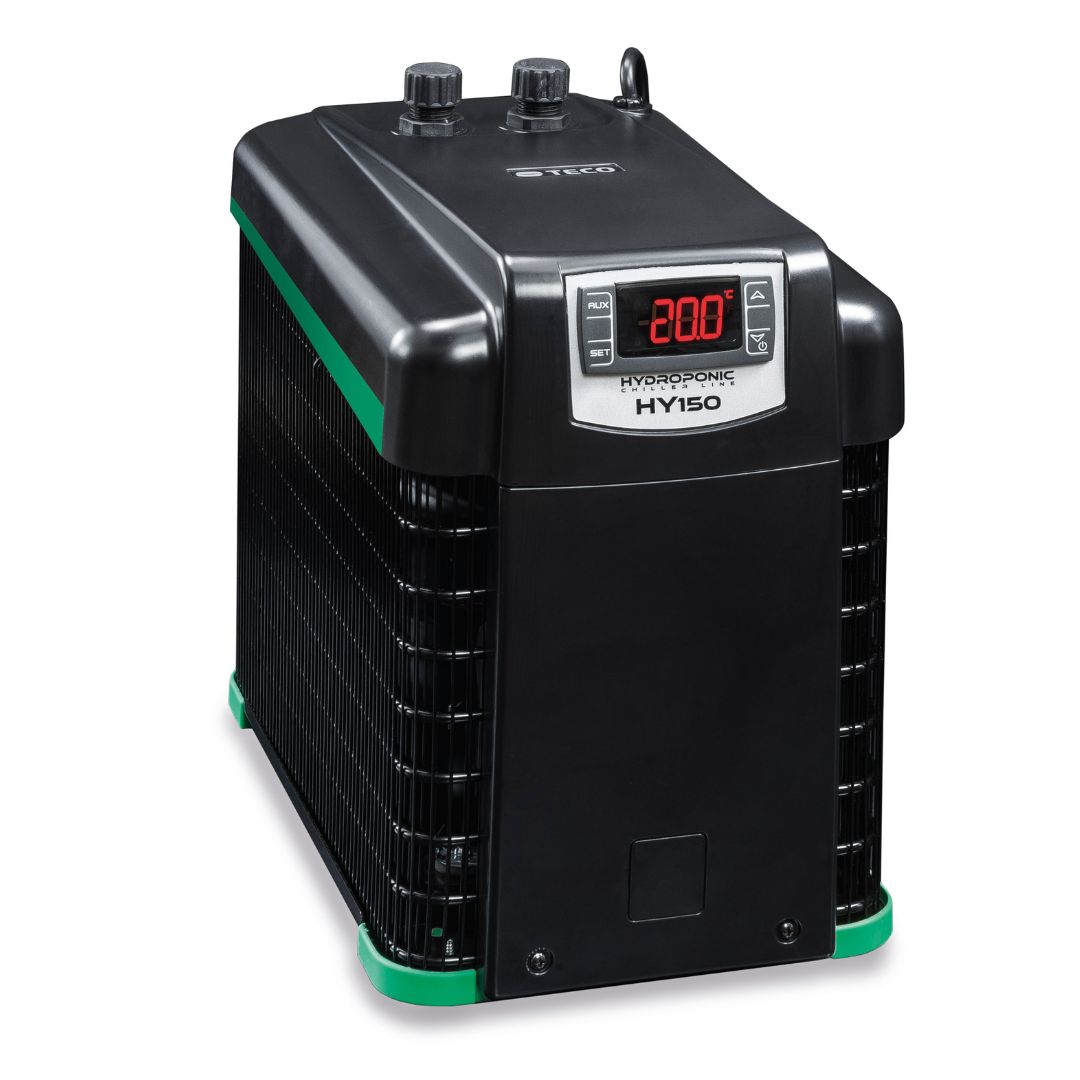

Advanced cooling solutionsfor Hydroponic

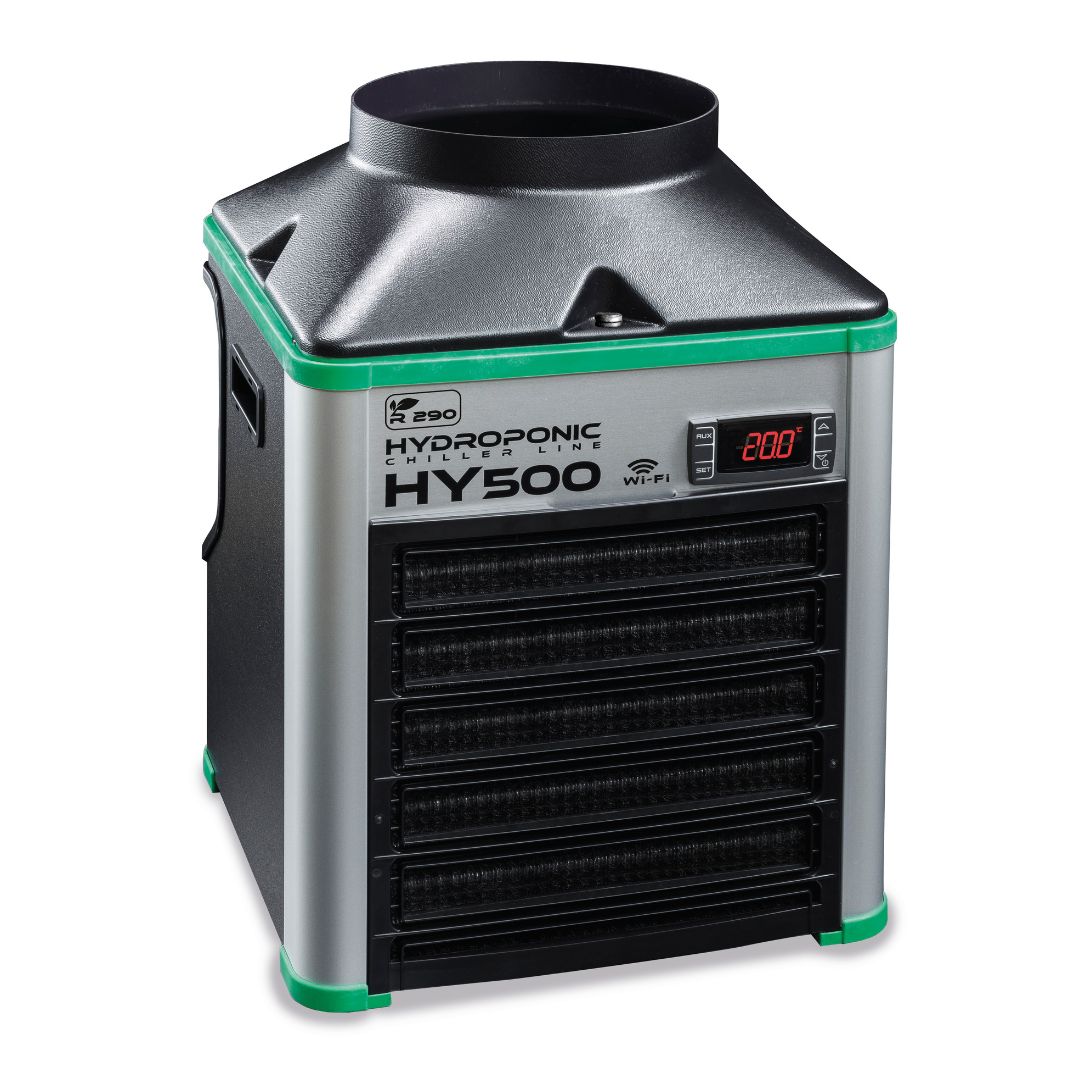

Hydroponic chillers up to 500 liters
Professional Made in Italy hydroponic chillers
TECObody-condenser system
The condenser is fully integrated into the unit’s structure, delivering a compact, distinctive design without filters and with reduced maintenance requirements.
| Dimensions |
215 × 361 × h315 mm
8.46 × 14.21 × h12.4 in
|
|---|---|
| Weight |
12.2 kg
26.9 lb
|
| Power supply | 230 V – 50 Hz |
| Cooling capacity | 220 W* |
| Power consumption | 150 W* |
| Min and Max waterflow |
300–500 liters/h
80–132 US gal/h
|
| Ambient temperature range |
10 °C – 32 °C
50 °F – 90 °F
|
| Water temperature range |
16 °C – 22 °C
61 °F – 72 °F
|
| Refrigerant |
Ecologic R290
|
| Display temperature | °F or °C on request |
| Heater | Not available for this unit |
| Dimensions |
310 × 310 × h440 mm
12.2 × 12.2 × h17.3 in
|
|---|---|
| Weight |
16.5 kg
36.4 lb
|
| Power supply | 230 V – 50 Hz | 115 V – 60 Hz |
| Cooling capacity | 450 W* |
| Power consumption | 185 W* |
| Min and Max waterflow |
500–800 liters/h
132–211 US gal/h
|
| Ambient temperature range |
10 °C – 38 °C
50 °F – 100 °F
|
| Water temperature range |
16 °C – 22 °C
61 °F – 72 °F
|
| Refrigerant | R290 |
| Display temperature | °F or °C on request |
| Heater | Optional for this unit (HY500H) |

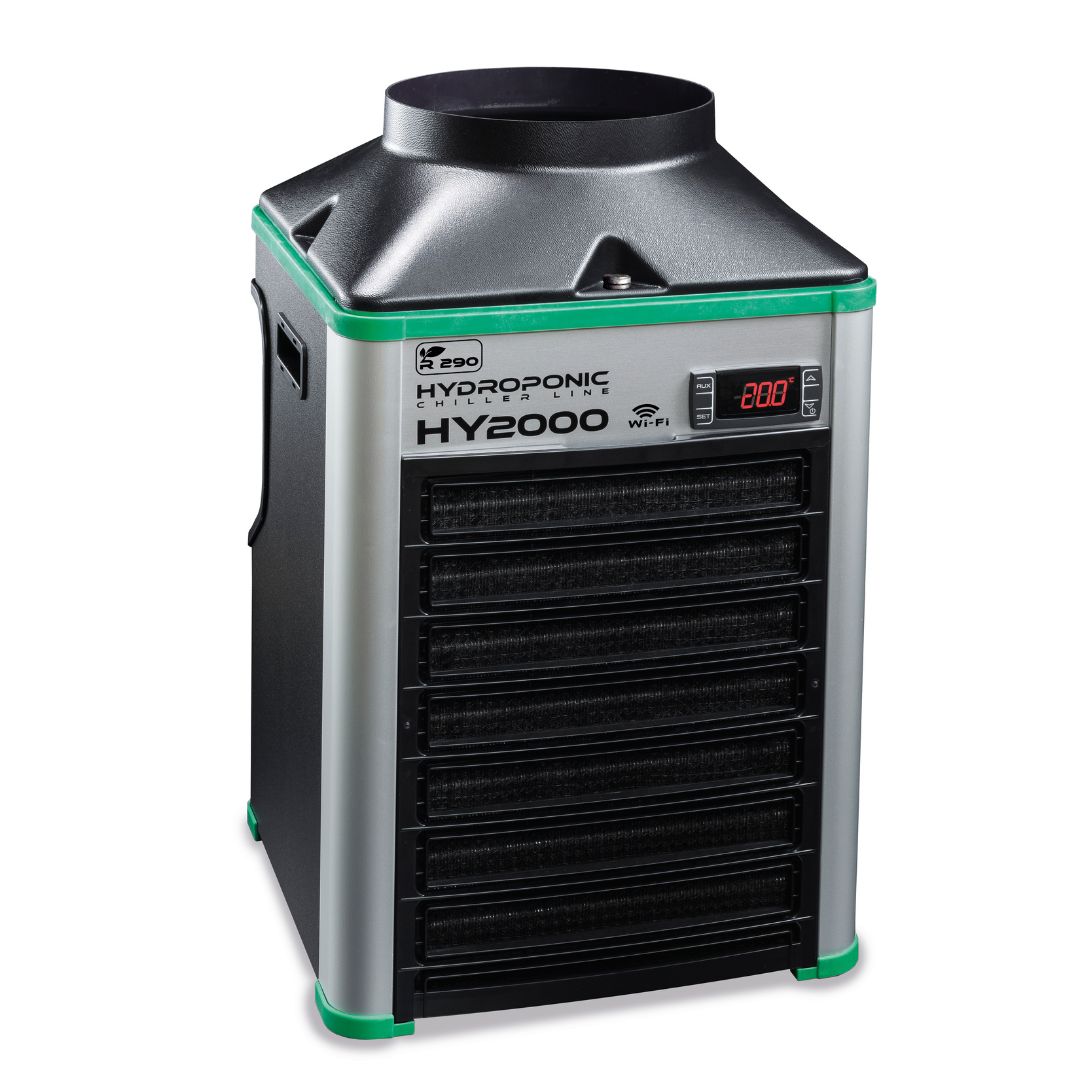

Hydroponic chillers up to 2000 liters
Professional Made in Italy hydroponic chillers
| Dimensions |
310 × 310 × h482 mm
12.2 × 12.2 × h19 in
|
|---|---|
| Weight |
19.7 kg
43.4 lb
|
| Power supply | 230 V – 50 Hz | 115 V – 60 Hz |
| Cooling capacity | 450 W* |
| Power consumption | 185 W* |
| Min and Max waterflow |
500–800 liters/h
132–211 US gal/h
|
| Ambient temperature range |
10 °C – 38 °C
50 °F – 100 °F
|
| Water temperature range |
16 °C – 22 °C
61 °F – 72 °F
|
| Refrigerant | R290 |
| Display temperature | °F or °C on request |
| Heater | Optional for this unit (HY100H) |
| Dimensions |
310 × 310 × h458 mm
12.2 × 12.2 × h18.03 in
|
|---|---|
| Weight |
19,7 kg
43,4 lb
|
| Power supply | 230 V – 50 Hz | 115 V – 60 Hz |
| Water tank capacity* |
1400 liters
130 US gal
|
| Min and Max waterflow |
500–800 liters/h
132 -211 US gal/h
|
| Ambient temperature range |
10 °C – 38 °C
50 °F – 100 °F
|
| Water temperature range |
5 °C – 30 °C
41 °F – 86 °F
|
| Refrigerant | R290 |
| Display temperature | °F or °C on request |
| Heater | Not available for this unit |
Hydroponic chillers up to 9.000 liters
Professional Made in Italy refrigeration units for aquariums
| Dimensions |
395 × 600 × h565mm
15.55 × 23.62 × h22.24 in
|
|---|---|
| Weight |
39 kg
86 lb
|
| Power supply | 230 V – 50 Hz | 115 V – 60 Hz |
| Water tank capacity* |
3000 liters
790 US gal
|
| Min and Max waterflow |
3000–4000 liters/h
793 -1057 US gal/h
|
| Ambient temperature range |
5 °C – 38 °C
41 °F – 100 °F
|
| Water temperature range |
5 °C – 30 °C
41 °F – 86 °F
|
| Refrigerant |
Ecologic R290a
|
| Display temperature | °F or °C on request |
| Heater | Not available for this unit |
| Dimensions |
395 × 600 × h565mm
15.55 × 23.62 × h22.24 in
|
|---|---|
| Weight |
47 kg
103,7 lb
|
| Power supply | 230 V – 50 Hz | 115 V – 60 Hz |
| Water tank capacity* |
9000 liters
2370 US gal
|
| Min and Max waterflow |
3000–4000 liters/h
793 -1057 US gal/h
|
| Ambient temperature range |
5 °C – 38 °C
41 °F – 100 °F
|
| Water temperature range |
5 °C – 30 °C
41 °F – 86 °F
|
| Refrigerant |
Ecologic R290a
|
| Display temperature | °F or °C on request |
| Heater | Not available for this unit |
Efficient cooling technology
High-performance compressors and advanced technologies ensure efficient, quiet operation and long service life. A high Coefficient of Performance (COP) also helps reduce energy consumption and operating costs.
Digital thermostat
The intuitive digital interface allows precise temperature control, while adjustable ranges and maximum differentials ensure stable performance at all times. Integrated safety alarms provide additional protection.
Smart design
A solid, corrosion-resistant structure ensures durability and long-term protection against rust. Its innovative design combines strength and functionality, while the compact footprint allows easy installation even in limited spaces without compromising performance.
Unique features
Our chillers stand out for their use of eco-friendly refrigerants, reduced energy consumption, titanium heat exchangers, and a compact design. Advanced technologies ensure high thermal efficiency and make maintenance simple and straightforward.
